A custom camera node is a C++ class derived from UComposableCameraCameraNodeBase that runs on the camera chain every frame to produce or mutate the pose. This is the densest extension recipe — start here if you want a general feel for the authoring model, even if you're ultimately writing a transition or modifier instead.

When to write a node¶

Write a node when the effect is always part of this camera's behavior and operates per frame on the pose. Examples: reading input to drive rotation, resolving collision, applying an offset, snapping to a screen-space bound.

If the effect is conditional on runtime gameplay state (sprint FOV bump, aim pitch damping) or needs to reach into an existing node's parameters, write a modifier instead. If the effect is pose-to-pose blending (easing, physics-plausible recovery), write a transition.

The two-method contract¶

Every camera node implements two BlueprintNativeEvent-style hooks. The base class provides non-virtual Initialize() / TickNode() wrappers — you override the _Implementation methods.

• OnInitialize_Implementation() — runs once after pin resolution and subobject pin value application, before the first tick. Read static configuration, preallocate buffers, cache references.
• OnTickNode_Implementation(float DeltaTime, const FComposableCameraPose& CurrentPose, FComposableCameraPose& OutPose) — runs every frame on the camera chain. Reads CurrentPose, writes OutPose. Must not allocate.

A third hook, GetPinDeclarations_Implementation(TArray<FComposableCameraNodePinDeclaration>& OutPins), declares the node's pin schema. You only need to override this if your node has pins that aren't picked up automatically from UPROPERTY reflection (most don't).

A minimal example¶

// MyOffsetNode.h
#pragma once

#include "CoreMinimal.h"
#include "Nodes/ComposableCameraCameraNodeBase.h"
#include "MyOffsetNode.generated.h"

UCLASS(ClassGroup = ComposableCameraSystem, meta = (DisplayName = "My Offset"))
class MYPROJECT_API UMyOffsetNode : public UComposableCameraCameraNodeBase
{
    GENERATED_BODY()

public:
    UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = "Offset")
    FVector Offset = FVector::ZeroVector;

protected:
    virtual void OnInitialize_Implementation() override;
    virtual void OnTickNode_Implementation(
        float DeltaTime,
        const FComposableCameraPose& CurrentPose,
        FComposableCameraPose& OutPose) override;
};

// MyOffsetNode.cpp
#include "MyOffsetNode.h"

void UMyOffsetNode::OnInitialize_Implementation()
{
    // One-time setup. Nothing to do here for a pure offset.
}

void UMyOffsetNode::OnTickNode_Implementation(
    float DeltaTime,
    const FComposableCameraPose& CurrentPose,
    FComposableCameraPose& OutPose)
{
    OutPose = CurrentPose;
    OutPose.Location += Offset;
}

That's a working node. Drop it into a camera type asset, wire the pin (Offset auto-exposes because it's a UPROPERTY), and it participates in the chain.

Pins — what gets exposed, and how¶

Pins are how a node talks to the rest of the graph. There are two kinds of pin sources:

Reflection-driven pins. Every UPROPERTY on the node becomes an input pin whose type is derived from the UProperty via TryMapPropertyToPinType. Supported types: bool, int32, float, double, FVector2D, FVector, FVector4, FRotator, FTransform, AActor*, UObject*, and authored USTRUCTs. This is the path for 95% of pins — you don't write any pin declaration code.

Custom output pins (via GetPinDeclarations). If your node produces values other nodes consume (a computed pivot position, a resolved aim direction), declare them with GetPinDeclarations_Implementation:

void UMyNode::GetPinDeclarations_Implementation(
    TArray<FComposableCameraNodePinDeclaration>& OutPins) const
{
    FComposableCameraNodePinDeclaration Pin;
    Pin.PinName = TEXT("ResolvedPivot");
    Pin.DisplayName = TEXT("Resolved Pivot");
    Pin.Direction = EComposableCameraPinDirection::Output;
    Pin.PinType = EComposableCameraPinType::Vector3D;
    OutPins.Add(Pin);
}

At runtime, read inputs with GetInputPinValue<T>(PinName) and write outputs with SetOutputPinValue<T>(PinName, Value) — both are templated on the pin type.

Subobject pins — Instanced subobjects auto-expose their fields¶

If your node has an Instanced UPROPERTY (e.g. an interpolator), TryMapPropertyToPinType intentionally skips it — the subobject's own fields are exposed as pins on the parent node instead, via the subobject-pin machinery. This is how nodes like PivotDampingNode surface Interpolator.Speed and Interpolator.DampTime directly on the node.

UPROPERTY(EditAnywhere, Instanced, Category = "Damping")
TObjectPtr<UComposableCameraInterpolatorBase> Interpolator;

No extra code required — the editor walks the subobject tree, generates pins for each reflected field, and the runtime applies their values via ApplySubobjectPinValues before OnInitialize runs.

The hot-path rule (repeated because it matters)¶

OnTickNode_Implementation runs once per camera per frame, often for multiple cameras during a blend. It must not allocate. Concretely, inside tick:

• no new / MakeShared / MakeUnique
• no TArray::Add that can trigger reallocation, no TMap::Add, no TSet::Add
• no FString::Printf or FString::Format
• no UObject construction (NewObject, CreateDefaultSubobject)
• no blocking I/O, no logging at Display/Warning unless gated by a WITH_EDITOR-only debug flag

Preallocate in OnInitialize_Implementation. If you need a scratch buffer, store it as a UPROPERTY(Transient) with Reserve() called once during init, then SetNumUninitialized() in tick.

Which input comes from where — default values, graph wiring, context parameters¶

A pin's actual value at tick time is resolved through a chain:

1. If the pin is wired to another node's output in the graph, that wins.
2. Otherwise, if the pin is bound to a camera context parameter (e.g. PlayerPawn flowing through the whole chain), the context value wins.
3. Otherwise, the pin's authored default value (from the node's Details panel) is used.
4. If none of the above, the pin holds the UPROPERTY's C++ default.

You don't handle this in your node — GetInputPinValue<T> always returns the resolved value. But know the chain exists so you can reason about "why is this node seeing this value at runtime".

Compute nodes — the other flavor¶

If your work only needs to happen once at camera activation (a random offset seed, a measured distance), derive from UComposableCameraComputeNodeBase instead of UComposableCameraCameraNodeBase. Compute nodes run on the BeginPlay chain, override OnComputeNodeInitialize_Implementation, read inputs, write outputs, and their outputs are cached for the camera's lifetime.

UCLASS()
class MYPROJECT_API UMyComputeNode : public UComposableCameraComputeNodeBase
{
    GENERATED_BODY()

protected:
    virtual void OnComputeNodeInitialize_Implementation() override;
};

Compute nodes are the right choice when the result is stable across the camera's lifetime — "where did I spawn relative to the target", "which of these two spawn points should I use". If the value needs to recompute each frame, use a camera node.

Folder placement¶

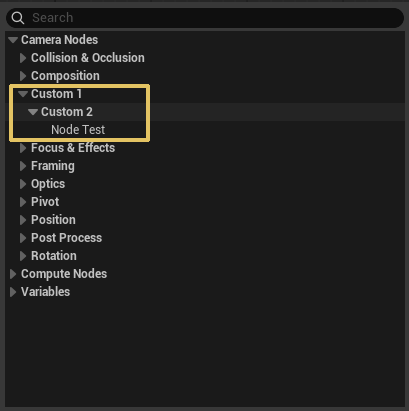

Placement isn't cosmetic — the editor's palette and context menu walk the class hierarchy under Nodes/, and misplaced classes don't appear. If you're extending the plugin from a separate project module, follow the same Public/Nodes / Private/Nodes layout inside that module.

Node vs modifier — when to pick which¶

The question comes up often enough to restate: is the effect always on, or is it gameplay-conditional?

• Always on → node. You're adding an operator to the camera's chain.
• Conditional (sprint, aim, stun, debug) → modifier. You're tweaking an existing node's parameters when some predicate is true.

A modifier can only mutate an existing node's parameters. If the effect requires new per-frame work (a new kind of collision trace, a new kind of input reading), no modifier will do — write the node.

See Custom Modifiers if you decide the answer is "modifier".

Testing in isolation¶

A new node is straightforward to unit-test:

1. Construct a UMyNode via NewObject.
2. Set any UPROPERTY inputs directly.
3. Call Initialize() (the non-virtual wrapper) once.
4. Construct an FComposableCameraPose input, call TickNode(DeltaTime, Input, Output) repeatedly.
5. Assert on Output.

No PCM, no camera tree, no context stack required. Nodes are intentionally isolated.

See also: Nodes Catalog for the shipped set and what each does; Custom Transitions and Custom Modifiers for the other two extension points; Editor Hooks if you need more than the reflection-driven Details panel.
