The Concepts → Transitions page covers what a transition is — a pose-only blender with a four-phase lifecycle, velocity-aware via InitParams, resolved through a five-tier priority chain. This page is about the authoring side: picking the right transition for a given cut, configuring duration and easing, and populating the transition table for pair-specific routing.

Picking a transition¶

The plugin ships a set of built-in transition classes. Rough guidance:

See the Reference → Transitions catalog for the full list including per-parameter defaults.

Choosing duration¶

A few rules of thumb:

• Gameplay transitions: 0.2–0.5s. Longer feels sluggish; shorter reads as a cut.
• ADS / aim-in / aim-out: 0.1–0.2s. The player wants the zoom to feel instant but not jarring.
• Cinematic enters: 0.5–1.0s. Players have time to notice the transition — use it to build tone.
• Cinematic exits: 0.3–0.6s. Getting back to gameplay should feel decisive, not cinematic.
• Death cams / reaction shots: 0.1–0.3s on both enter and exit. Short enough that the player doesn't lose input feel.

For inertialized transitions, TransitionDuration is only a minimum — if the source has enough velocity that decelerating to target in the requested time would require implausible acceleration, the transition auto-extends the duration. Set MaxAcceleration on the transition to control that ceiling.

Where transitions come from¶

Four authoring surfaces produce transitions:

1. Per-camera EnterTransition — the default on the camera type asset. "Whenever this camera is activated, blend in like this."
2. Per-camera ExitTransition — also on the type asset. "Whenever this camera leaves, blend out like this."
3. Project-wide transition table — a UComposableCameraTransitionTableDataAsset referenced from Project Settings → ComposableCameraSystem → TransitionTable. Holds pair-specific routing: "when going from A to B specifically, use this transition."
4. Caller-supplied override — the TransitionOverride pin on Activate Camera, TerminateCurrentCamera, and PopCameraContext.

At activation, the PCM walks these in priority order — caller override first, then table, then source's ExitTransition, then target's EnterTransition. The first non-null result wins. If none produces a transition, the activation is a hard cut.

Five-tier resolution chain in practice¶

Think of the chain as a cascade of defaults, most-specific first:

Caller override       specific to this exact activation call
   ↓ (not provided)
Transition table      specific to this exact (source, target) pair
   ↓ (no matching entry)
Source ExitTransition  specific to this source camera
   ↓ (source didn't set one)
Target EnterTransition  specific to this target camera
   ↓ (target didn't set one)
Hard cut               fallback — the new camera appears instantly

The design intent: each tier is for a narrower scope than the one below it. Authors set per-camera defaults on most assets; specific pair-routing goes in the table when two particular cameras need a different blend than either's defaults; caller overrides cover one-shot gameplay events.

When to set what¶

• Always set EnterTransition on every type asset. This is the most general catch-all and avoids accidental hard cuts.
• Set ExitTransition only when the camera needs a specific outgoing blend regardless of destination. Typical users: cutscene cameras, puzzle cameras, UI overlays — cameras whose exit semantics are fixed.
• Use the transition table sparingly. It's for genuinely pair-specific routing — e.g. "the transition between CT_AimDownSights and CT_CinematicIntro needs to be a long swoop because both are cinematic, but every other entry to CT_CinematicIntro should use its own EnterTransition." Avoid populating the table with what should really be per-camera defaults.
• Reach for the caller override for one-shot events. "This particular story trigger needs a slower-than-usual pop back to gameplay, because the player is supposed to feel the shock." Ten such events belong as ten caller overrides. Dozens of them belong in the transition table.

Authoring the transition table¶

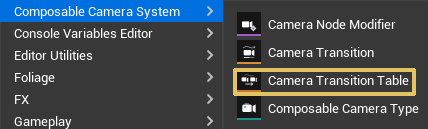

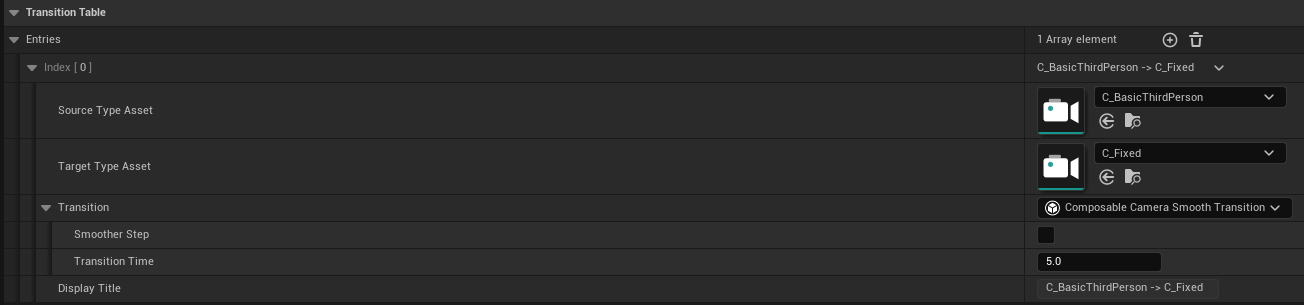

The transition table is a single UComposableCameraTransitionTableDataAsset. Create one via Content Browser → right-click → Composable Camera System → Transition Table. Open it. The Details panel shows a single Entries array. Each entry is a (SourceTypeAsset, TargetTypeAsset, Transition) triple:

• SourceTypeAsset (soft ref, required) — the camera being left.
• TargetTypeAsset (soft ref, required) — the camera being entered.
• Transition (instanced) — the transition object to use for that exact pair. Entries are exact-match — both source and target must match for the entry to fire. No wildcards, no globbing. First matching entry in declaration order wins, so if you add two entries for the same pair, only the first one is used.

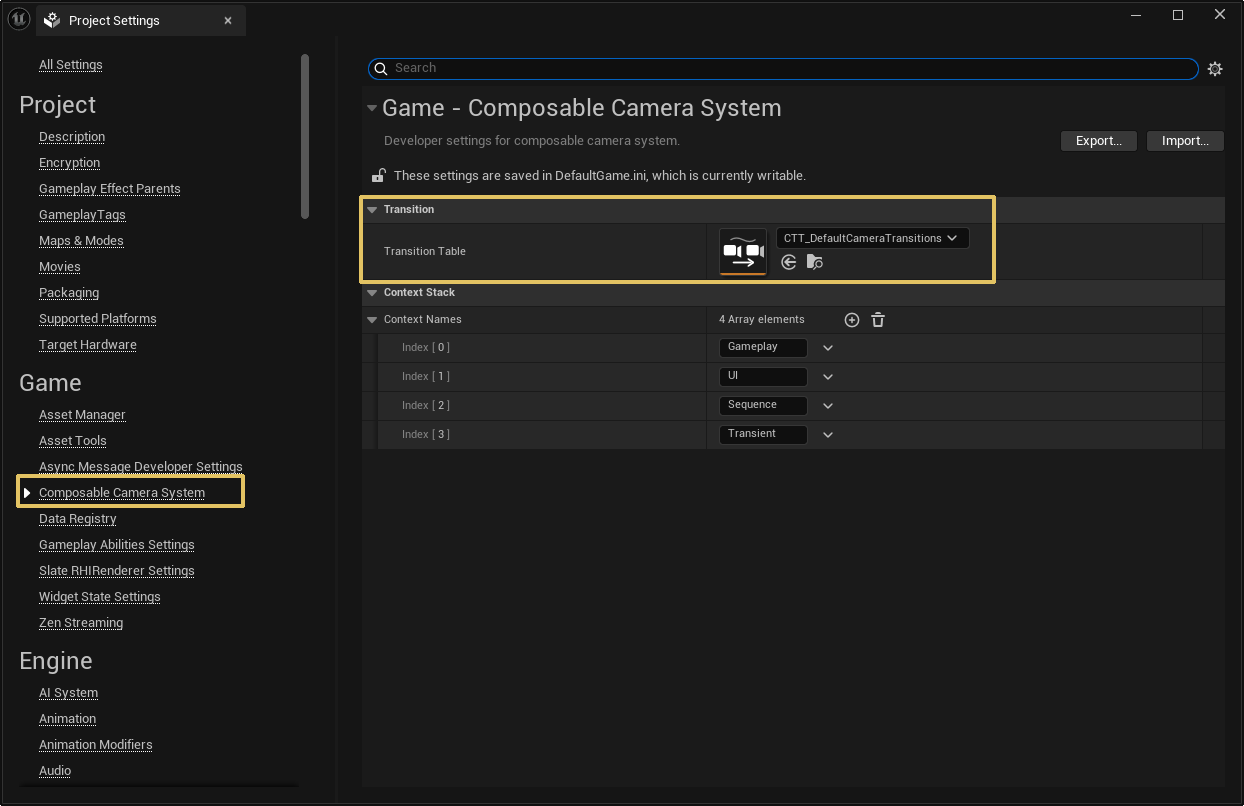

After populating the table, wire it into Project Settings → ComposableCameraSystem → TransitionTable. The setting is a soft reference; the PCM loads the table on boot and uses it for every subsequent activation.

The table's editor runs a validation pass on save: null source or target emits an error (the entry is ignored at runtime), null transition emits a warning (the entry falls through to the next tier as if it weren't there). Inline warnings appear in the Details panel, not just in the Output Log.

Transitions as standalone data assets¶

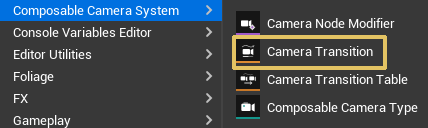

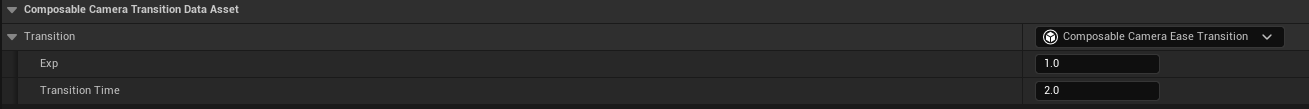

Sometimes you want to reference a configured transition from multiple places — a TransitionOverride wired to three different BP nodes, or a transition used both in a table entry and on a type asset's EnterTransition. Rather than duplicating the configured transition at each site, wrap it in a Transition Data Asset: 1. Content Browser → right-click → **Composable Camera System → Camera Transition. 2. Set its inner Transition to an instanced transition of the desired class (e.g. InertializedTransition with Transition Time = 0.8). 3. Reference the data asset wherever a transition is expected. The K2 node's Transition Override pin accepts a UComposableCameraTransitionDataAsset*; the transition table's entries can also hold data asset wrappers. This keeps configuration in one place — tune the asset once, and every referencing site updates.

Multi-camera blends¶

Because transitions are pose-only and cannot see what's happening above them, several non-obvious patterns work "for free":

• Blending in the middle of another blend. If you activate camera C while a blend from A to B is in progress, the tree's inner node for the A→B blend becomes the source of a new A→B→C blend. The new transition's left input is the live blended pose of A→B; it doesn't know or care.
• Blending across a context pop. Popping from a cutscene context back to gameplay runs the chosen transition with the outgoing cutscene director evaluating live through a reference leaf. See Concepts → Context Stack for the mechanics.
• Pausing a camera mid-blend. If the source camera's node evaluation is suspended (e.g. by gameplay logic), the transition wouldn't notice as long as it still receives a pose — which the source still emits even when paused.

None of these patterns need special-case transition types. Any transition — linear, inertialized, spline, custom — works in any of them, because each only sees two poses and a blend percentage.

Common pitfalls¶

• A transition that feels "kinked" at the start usually means the source camera was mid-motion but the transition doesn't use InitParams. Switch to InertializedTransition, or author a custom transition that reads PreviousSourcePose and CurrentSourcePose from FComposableCameraTransitionInitParams.
• A transition that doesn't fire — activation appears to hard-cut — means none of the five tiers resolved a transition. Check that something is set: the target's EnterTransition is the usual catch-all.
• The wrong transition fires when a table entry is present — the table is walked in declaration order; an earlier entry for a superset pair may be winning. Reorder entries, or remove the more-general one.
• A transition overshoots the target — this is the inertialized transition's 5^th-order polynomial responding to a large initial velocity in a short requested duration. Either raise TransitionDuration, or lower MaxAcceleration so the auto-extend kicks in and gives the blend more time.

Authoring your own transition¶

If none of the shipped transitions cover your case, writing a new one is a small, self-contained task. Subclass UComposableCameraTransitionBase, override OnBeginPlay, OnEvaluate, and (if applicable) OnFinished. Your OnEvaluate receives two poses and a blend percentage, and returns a pose. The engine handles tree rewriting, collapse, cross-context fan-out, and GC.

See Extending → Custom Transitions for the full recipe, including the InitParams handling pattern for velocity-aware blends.

Next: the Reference catalog of every shipped node, transition, and modifier — with authored descriptions of when to use each.
