Every node shipped with the plugin, grouped by role. See Concepts → Overview for the evaluation model and the layered picture; User Guide → Authoring Camera Types for typical compositions and pin resolution authoring.

Nodes split into two execution chains:

• Camera nodes — subclasses of UComposableCameraCameraNodeBase. Run every frame on the camera chain to produce the pose.
• Compute nodes — subclasses of UComposableCameraComputeNodeBase. Run once on the BeginPlay chain at activation and publish results that camera nodes consume each frame.

Each node's authored per-property API reference (full field lists, types, ranges) lives in the auto-generated Reference → API → Classes section. This page covers what each node is for and when to reach for it.

Pose helpers¶

FixedPoseNode¶

Pass-through. Keeps the current pose unchanged. Useful as a placeholder while wiring other nodes, or as a terminator in a branch that shouldn't modify the pose.

RelativeFixedPoseNode¶

Maintains the camera pose at a fixed offset relative to a reference transform or actor. Good for locked shots that need to track a moving actor without any additional logic (e.g. a side-scroller camera rigidly welded to the player).

Pivot and subject¶

These nodes are the first stage of most cameras — they establish "what is this camera looking at / following" before any offset or rotation logic runs.

ReceivePivotActorNode¶

Reads an actor's world position and writes it to an output PivotPosition pin. The actor typically comes in as a context parameter — see the Gameplay context pattern in Authoring Camera Types → Typical compositions.

PivotOffsetNode¶

Offsets the pivot position. Supports world-space, actor-space, or camera-space offsets — use actor-space for "one meter above the character's root" shoulder-height setups, world-space for gravity-aligned offsets, camera-space for screen-relative nudges.

PivotDampingNode¶

Dampens pivot position changes using an Instanced interpolator (IIR, simple spring, or spring-damper). Smooths out jittery or teleport-style pivot updates — for example, when the pivot is bound to a character whose root bone snaps during a montage.

The interpolator is a subobject UPROPERTY, so its individual parameters (Speed, DampTime, etc.) are auto-exposed as subobject pins and can be wired or overridden from the type asset.

Camera offset and rotation¶

Once the pivot is set, these nodes position and orient the camera relative to that pivot.

CameraOffsetNode¶

Applies an offset in camera-local space — "behind and to the right of the pivot, at some distance". The camera-local frame follows the camera's rotation, so the offset stays coherent as the player orbits.

ControlRotateNode¶

The input handler for third-person and free-look cameras. Reads an Enhanced Input InputAction from a nominated RotationInputActor (typically the player pawn, passed in via a context parameter) and applies yaw/pitch.

Requires Enhanced Input — add EnhancedInput to the project's module dependencies if it isn't already there.

AutoRotateNode¶

Rotates the camera back toward a reference forward direction when it drifts outside an authored yaw/pitch range. Typical uses: idle sweep (camera drifts toward character forward while the player isn't touching the stick), soft threat lock-on, or cinematic re-framing.

Direction source. DirectionMode selects how the reference forward is resolved each frame:

• Direction — an explicit MainDirection vector, typically wired from an upstream compute node or set as a context parameter. Default; X-forward out of the box.
• ActorForward — reads PrimaryActor's world forward vector each frame. Use this when the reference should track a moving character naturally, without needing a compute node to publish the forward.

Input interrupt. When bInterruptOnUserInput is true (default), stick input detected via the CameraRotationInput pin interrupts an in-progress auto-rotation and starts the InputInterruptCooldown timer before auto-rotation can resume. MaxCountAfterInputInterrupt caps how many times this re-activation is allowed per camera lifetime. Set bInterruptOnUserInput to false to run auto-rotation unconditionally — only BeyondValidRangeCooldown then gates it.

Interpolation. A single RotateInterpolator (Instanced subobject) drives both yaw and pitch together so they reach the target boundary in the same time. If null, the camera teleports to the boundary in one frame.

RotationConstraints¶

Constrains yaw and/or pitch within defined ranges. Typically placed after ControlRotateNode to stop the player from looking straight up or spinning 360°. Ranges are authored in degrees.

PivotRotateNode¶

Synchronises the camera's rotation to a pivot actor's world rotation, composing an authored RotationOffset in the pivot's local space — equivalent to a child USceneComponent with RelativeRotation set to that offset. Useful for vehicle, mount, and cockpit cameras where the camera should adopt the rig's heading (and optionally pitch / roll) with a fixed relative tilt and a smooth catch-up rather than a hard lock.

Quaternion composition (PivotActor.Quat * RotationOffset.Quat) avoids the gimbal artifacts that a raw FRotator add produces when the pivot has non-trivial pitch or roll.

Inputs: PivotActor (Actor), RotationOffset (Rotator — zero copies the pivot rotation exactly). Interpolator: optional Instanced subobject; its child properties surface as pins automatically via the base class's subobject-pin pipeline. When null, the camera snaps to the target each frame; when set, it eases toward it on the interpolator's curve.

Header: ComposableCameraPivotRotateNode.h C++ reference: UComposableCameraPivotRotateNode

Look-at¶

LookAtNode¶

Rotates the camera to face a target. Supports:

• Target by position (ByPosition) or by actor (ByActor, with an optional LookAtSocket for skeletal-mesh attachment).
• Hard constraint (Hard) — the player cannot control camera rotation; look-at is absolute.
• Soft constraint (Soft) — the player keeps control within a radius, and the node pulls the camera back toward the target when the player stops inputting. Parameters: SoftLookAtRange (degrees), SoftLookAtWeight (0–1; higher = snappier return), and an Instanced SoftLookAtInterpolator (typically SpringDamperInterpolator) for the smoothing curve.

Place after ControlRotateNode in a third-person chain to implement "soft lock-on" for melee targeting.

ScreenSpacePivotNode¶

Keeps the pivot within a configurable screen-space rectangle. Instead of re-orienting the camera to face the subject, it translates the camera so that the subject's projected position stays inside the authored bounds. Useful for cinematic over-the-shoulder framings where the subject should always be in the right third of frame.

ScreenSpaceConstraintsNode¶

Generalized screen-space constraint solver — combines multiple constraints (pivot position, look-at angle, subject margin) into one solver pass. Choose this over ScreenSpacePivotNode when you need more than one screen-space condition simultaneously.

Lens, FOV, and projection¶

These nodes author the pose's lens and projection fields. They typically appear near the end of the node chain, after the camera's position and orientation are settled.

FieldOfViewNode¶

Sets FOV in degrees. Writes to FComposableCameraPose::FieldOfView and clears FocalLength, so the pose resolves FOV directly rather than from focal-length/sensor math.

Optional "dynamic FOV" driven by an actor's scale (e.g. zoom out when the character grows during a power-up).

LensNode¶

Authors physical-lens parameters on the pose: FocalLength, Aperture, FocusDistance, DiaphragmBladeCount, PhysicalCameraBlendWeight. When bOverrideFieldOfViewFromFocalLength is true, also clears FieldOfView so the pose resolves FOV from FocalLength + SensorWidth.

PhysicalCameraBlendWeight gates depth-of-field and auto-exposure post-process contribution — dial to 0 for "game FOV" feel, 1 for "cinematic lens" feel.

FocusPullNode¶

Dynamically drives the camera pose's FocusDistance from the projected on-axis depth to a target actor. Single-responsibility node — it only touches FocusDistance; everything DoF needs beyond that (aperture, blade count, filmback, PhysicalCameraBlendWeight) comes from an upstream LensNode.

Intended composition:

... → LensNode(FocalLength, Aperture, BlendWeight=1, FocusDistance=-1)
    → FocusPullNode(drives FocusDistance from PivotActor)
    → ...

LensNode's FocusDistance = -1 is the "leave for downstream" sentinel. If LensNode writes a concrete value instead, FocusPullNode overwrites it (last writer wins on the pose) — both work, but the sentinel makes intent obvious. Without a LensNode upstream (or another node setting PhysicalCameraBlendWeight > 0), the focus distance is written but DoF will not activate at the renderer level.

Target resolution follows the same PivotActor + BoneName / PivotZOffset pattern as CollisionPushNode and OcclusionFadeNode, so the same context-parameter wiring feeds all three.

Depth formula. Focus distance is camera-space depth — the dot product of (TargetPoint − CameraPos) with the camera forward vector — not Euclidean distance. For an off-axis target at 10 m and 45°, projected depth is ~7 m. This is what ApplyPhysicalCameraSettings and the renderer's DoF system consume; Euclidean distance would produce incorrect focus for any off-axis subject.

Smoothing is optional via the standard interpolator system (SpringDamper / IIR / SimpleSpring). The first tick after activation bypasses the interpolator so focus snaps to the real depth rather than ramping in from a stale prior value.

C++ reference: UComposableCameraFocusPullNode

FilmbackNode¶

Authors sensor and aspect-ratio parameters: SensorWidth, SensorHeight, SqueezeFactor, Overscan, ConstrainAspectRatio, OverrideAspectRatioAxisConstraint, AspectRatioAxisConstraint. Sensor dimensions feed into the pose's focal-length-mode FOV resolution, so place this alongside LensNode when using physical lens authoring.

PostProcessNode¶

Applies post-process settings to the camera pose. Works like a PostProcessVolume but scoped to a single camera type — only properties whose bOverride_* flag is true take effect; all others pass through from the camera component's baseline or from earlier nodes.

Multiple PostProcessNodes in the same camera stack compose in execution order: later nodes override earlier ones for the same bOverride_* property. No pins are declared — FPostProcessSettings is configured entirely through the Details panel, matching the PostProcessVolume workflow UE artists are already familiar with.

OrthographicNode¶

Switches the pose into orthographic projection and authors OrthographicWidth, OrthoNearClipPlane, OrthoFarClipPlane. For top-down, side-scrolling, or isometric cameras.

Collision, occlusion, and constraints¶

These nodes modify the camera's final position in response to the world — pushing it away from geometry, fading obstructing primitives, or keeping it inside a defined volume.

CollisionPushNode¶

Dual-mode collision resolver, and one of the largest single nodes in the plugin.

Trace collision — casts a line or sphere trace from pivot to camera each frame. On occlusion, pushes the camera toward the pivot, optionally with an exemption time window (brief occlusions don't react).

Self collision — carries a sphere around the camera. When the sphere overlaps an obstacle, pushes the camera to the far side of the obstacle via a reverse sphere sweep from beyond the camera back toward the pivot. Good for thin walls that line traces miss.

Both modes share the same interpolator pair (push/pull) and ignored-actor list. The two interpolators are Instanced subobjects — their parameters are subobject-pin-exposed (e.g. PushInterpolator.Speed, PullInterpolator.DampTime) so they can be tuned from the type asset's Details panel or wired from gameplay.

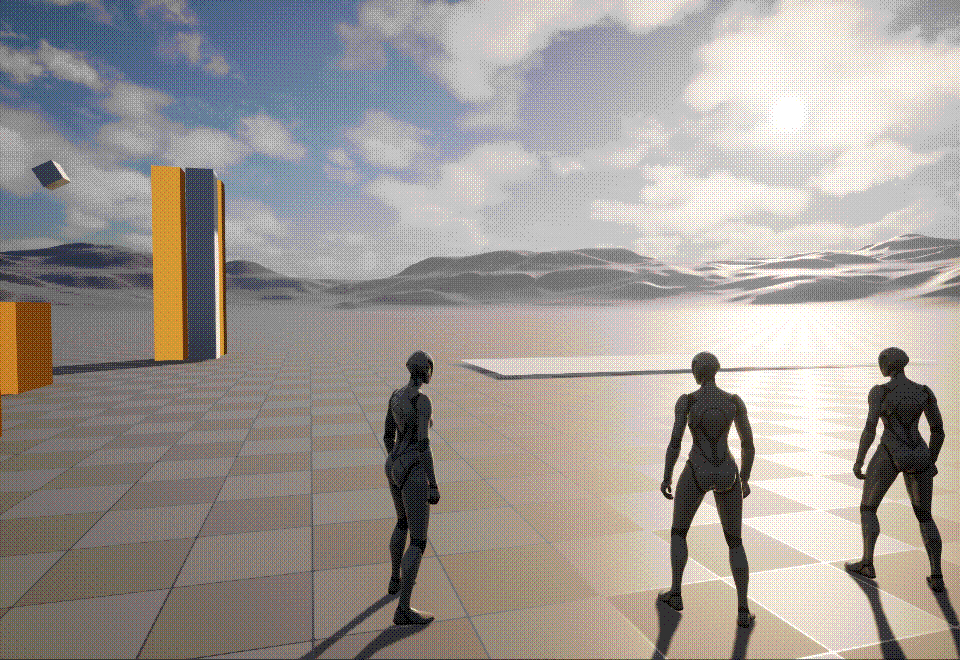

OcclusionFadeNode¶

Fades primitives between the camera and a target actor (or near the camera) by swapping their materials for a user-supplied transparency material. Two independent detection paths feed the same material-swap pipeline:

• Line-of-sight occlusion (bFadeOccluders) — async multi-sphere sweep from camera to target each frame. Every primitive hit that passes the tag/mesh-type filters is fade-marked. The sweep is submitted on frame N and consumed on frame N+1, keeping the game thread off the physics query's critical path; occluder decisions lag by one frame, which is visually acceptable.
• Proximity fade (bFadeNearbyActors) — synchronous sphere overlap at the camera position each frame. Every actor of class ProximityActorClass within ProximityRadius is fade-marked. Use for characters that walk directly in front of the camera.

Both paths produce a union set of primitives to fade this frame. Delta tracking against AppliedMaterialOverrides means material API calls only happen when primitives enter or leave the set — the steady state produces zero per-frame material work.

The fade look (dither, fresnel, opacity animation, speed) lives entirely in the OcclusionMaterial shader. The node does instant swaps; any smooth cross-fade is authored in the shader. This follows Epic's UOcclusionMaterialCameraNode design. Unlike Epic's node, both static and skeletal mesh components are eligible (controlled by bAffectStaticMeshes / bAffectSkeletalMeshes).

Chain placement: typically after CollisionPushNode — let collision resolve the camera position first, then fade whatever remains between the camera and the subject.

C++ reference: UComposableCameraOcclusionFadeNode

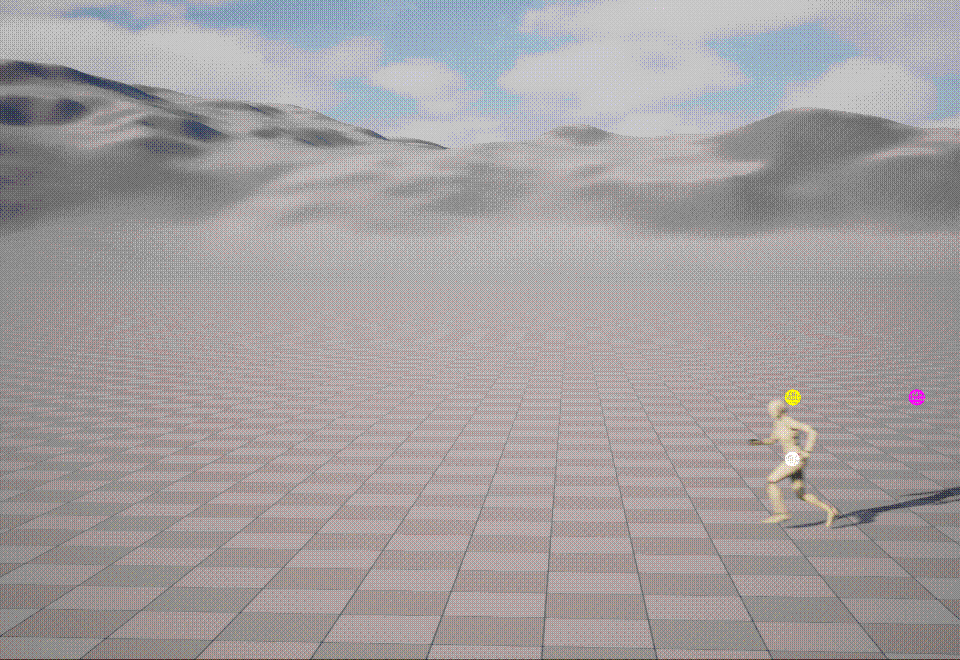

VolumeConstraintNode¶

Constrains the camera position to stay inside a single Box or Sphere volume. When the upstream position is outside the volume it is projected to the nearest boundary point (per-axis OBB clamp for Box, radial clamp for Sphere); when it is already inside, the node is a no-op pass-through.

Volume source. VolumeSource selects how the geometry is provided:

• FromActor — reads the first UBoxComponent or USphereComponent on a placed VolumeActor. The component's world transform is sampled each tick, so moving volumes work.
• Inline — the node carries its own VolumeCenter, VolumeRotation, BoxExtents / SphereRadius directly. Useful when no actor needs to be placed in the level.

Smoothing. The default is a hard projection — stateless and deterministic. An optional ClampInterpolator adds per-axis temporal smoothing (three independent 1D filter instances, one per world-space axis) to eliminate visible snaps on release, corner face-switches, or scripted teleports.

Chain placement: after CameraOffsetNode / LookAtNode (position-writing nodes) and before CollisionPushNode — so the collision resolver operates on the already-constrained position rather than fighting the constraint.

C++ reference: UComposableCameraVolumeConstraintNode

ImpulseResolutionNode¶

Resolves impulse forces applied via volumes — the "camera got pushed by an explosion" channel. Listens for impulse events registered on trigger volumes in the level and integrates them into the pose with configurable damping.

Movement and authored motion¶

These nodes place the camera on a pre-authored path or procedural trajectory. They produce position only — pair with a downstream LookAtNode to orient the camera along the path.

SplineNode¶

Places the camera on a spline, with multiple spline math backends: BuiltInSpline (wraps USplineComponent), BezierSpline, CubicHermiteSpline, BasicSpline (B-spline), NURBSpline. Useful for rail-style fixed-path cameras — boss intro flyovers, zone-entry establishing shots — where the path is authored, not derived.

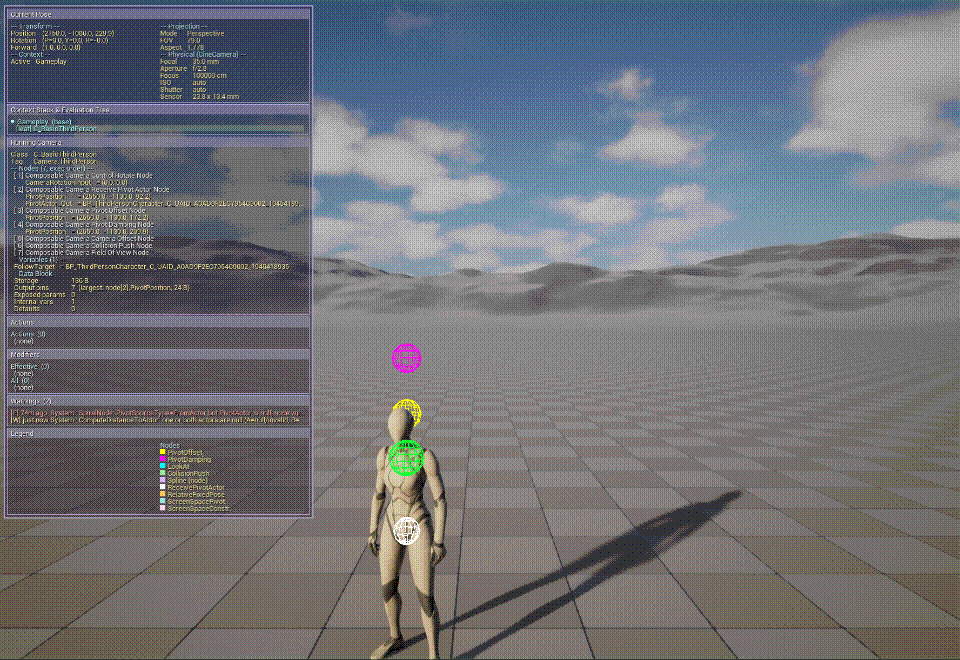

SpiralNode¶

Places the camera on a helical path around a pivot point. Position-only — rotation is left untouched, so pair with a downstream LookAtNode to keep the subject in frame.

The trajectory is defined by three curves over normalized time:

All three use the Progress authoring pattern — direct curve evaluation at NormalizedTime, no per-frame integration. Position at any instant is O(1) and the node carries no accumulated state, so scrubbing or restarting the effect is clean.

Spiral Space (the Up/Forward/Right basis around which the angle is measured) is re-derived each tick from RotationAxis and ReferenceDirection enums. CameraInitialForward captures the camera's forward at activation and uses it as the angle reference, so the spiral starts seamlessly from wherever the camera was pointing.

Play modes: Once (clamp at Duration), Loop (Fmod wrap), PingPong (mirrored time oscillation). A Loop orbit typically authors AngleCurve as Y(0)=0, Y(1)=360·N for a seamless N-turn cycle — trig periodicity absorbs the angular wrap.

C++ reference: UComposableCameraSpiralNode

Cinematic effects¶

Time-based, curve-driven effects intended for scripted moments — boss reveals, narrative beats, cutscene punctuation. These nodes play once from activation (or loop/ping-pong when configured) and do not respond to per-frame player input.

HitchcockZoomNode¶

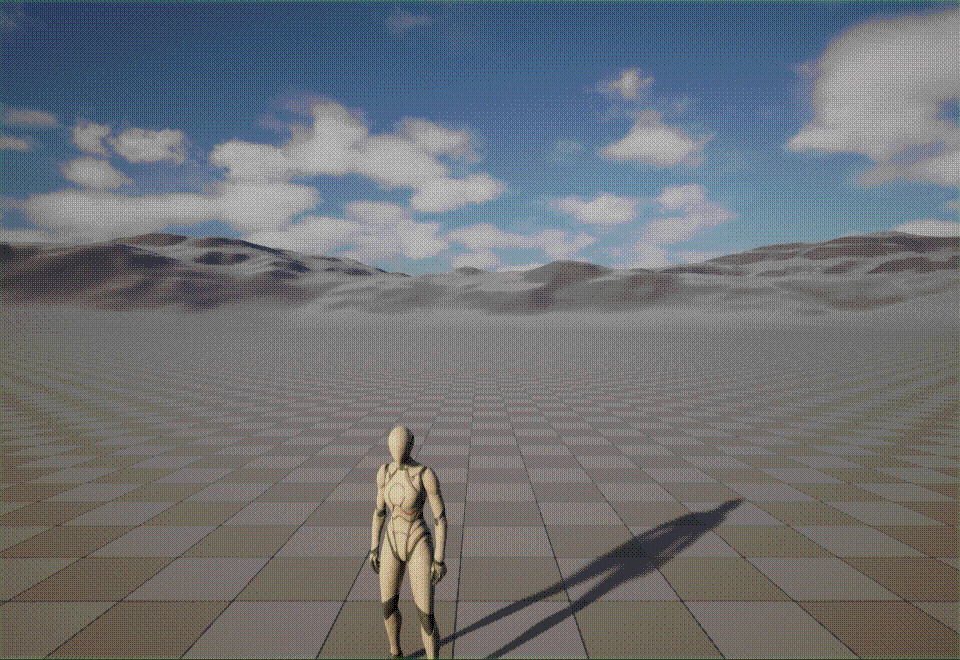

The Hitchcock Zoom (also known as the Vertigo effect, dolly zoom, or trombone shot): the camera moves along its view axis while FOV changes in the opposite direction. The result is that the target subject keeps roughly the same on-screen size while the background perspective warps dramatically.

Authoring modes. Driver selects which curve you author; the other quantity is solved from a lock constant (distance · tan(FOV/2)) captured on the first tick:

• FromFOVDelta — author FOVDeltaCurve as an additive FOV delta in degrees over normalized time. Natural when you think about the visual look ("background should distort by N degrees wider").
• FromDistanceDelta — author DistanceDeltaCurve as an additive distance delta in world units. Natural when you think about the physical move ("dolly back 3 metres").

Curve convention — additive delta, Y(0) = 0. Both curves express the change from the captured initial state, not an absolute trajectory. A curve with Y(0)=0, Y(1)=−30 on FOVDeltaCurve means "narrow the FOV by 30 degrees over the duration", regardless of whether the initial FOV is 60 or 90. This makes curves portable across cameras and guarantees the first tick outputs the unmodified initial state — no seam at t=0.

Initial FOV. Set InitialFOVOverride > 0 to pin the starting FOV explicitly (useful when no upstream LensNode or FieldOfViewNode is in the chain and the pose would otherwise inherit a renderer default). Leave at the default −1 to read GetEffectiveFieldOfView() from the upstream pose.

Composability. Direction is resampled from the upstream pose every tick, so an upstream LookAtNode can continue steering during the effect — HitchcockZoomNode owns only the radial distance and FOV, leaving rotation to the rest of the chain. FOV ownership: the node writes FieldOfView and clears FocalLength to −1 (FOV-mode sentinel). If an upstream LensNode is present, set bOverrideFieldOfViewFromFocalLength to false on it.

Play mode is implicitly Once — the curves clamp at NormalizedTime = 1 after Duration elapses and the pose freezes at the final state. Re-activate the camera context to restart.

C++ reference: UComposableCameraHitchcockZoomNode

Composition¶

MixingCameraNode¶

Mixes the output of multiple child cameras into one pose. The child cameras are themselves full composable cameras (auxiliary, spawned via the PCM's C++-only CreateNewCamera / ActivateNewCamera entry points). Use for custom multi-subject cameras (framing two players, boss-and-hero cameras) where each subject needs its own evaluation tree.

Mixing weights and the blend function are authored as node parameters.

BlueprintCameraNode¶

A camera node whose OnTickNode is implemented in Blueprint. Lets gameplay programmers prototype or ship one-off node behavior without touching C++. For production code intended to ship on the per-frame hot path, migrate to a C++ subclass — Blueprint VM overhead is non-trivial when called every frame per camera.

ViewTargetProxyNode¶

Internal-only node — not intended for placement in camera type assets by designers. Created programmatically by the PCM's SetViewTarget override (implicit camera activation) to relay an external UCameraComponent's FMinimalViewInfo into CCS as an FComposableCameraPose each tick. If the target actor is missing or has no UCameraComponent, the node passes through the unmodified input pose.

Compute nodes¶

Compute nodes run once at camera activation on the BeginPlay chain. They publish output values that camera nodes downstream read once and cache — not reread each frame.

ComputeRandomOffsetNode¶

Generates a random offset vector within min/max bounds. Use for spawn-time jitter (to avoid two cameras of the same type starting at identical positions), shake seeds, or randomized starting positions that remain stable across the camera's lifetime.

Inputs: MinOffset, MaxOffset (Vector3D). Output: RandomOffset (Vector3D).

ComputeDistanceToActorNode¶

Measures the distance and direction between two actors at activation time. Use to scale boom-arm length, set initial FOV, or derive blend weights from actor proximity at the moment the camera spawns.

Inputs: ActorA, ActorB (Actor). Outputs: Distance (Float), Direction (Vector3D).

Node base class¶

UComposableCameraCameraNodeBase¶

Abstract. The base every camera node derives from. Exposes:

• Initialize() (non-virtual wrapper) → OnInitialize_Implementation(). Called once after pin resolution and subobject pin application, before the first tick.
• TickNode() (non-virtual wrapper) → OnTickNode_Implementation(DeltaTime, CurrentPose, OutPose). Called every frame on the camera chain.
• GetPinDeclarations_Implementation(OutPins). Declares the node's pin schema.

See Extending → Custom Nodes for the authoring recipe.

UComposableCameraComputeNodeBase¶

Abstract. The base every compute node derives from. Overrides one method:

• OnComputeNodeInitialize_Implementation(). Called once on the BeginPlay chain. Read inputs, compute, write outputs.

See also: the auto-generated API Reference for per-class property tables; Extending → Custom Nodes for writing your own; User Guide → Graph Editor for the authoring surface.

UComposableCameraCompositionFramingNode¶

A pose-overwriting camera node that drives a complete camera pose (Position, Rotation, FOV, Aperture, FocusDistance) from an authored FComposableCameraShot data block each tick. This is the runtime consumer that connects the Shot-Based Keyframing data model to the CCS evaluation pipeline.

Key behaviors:

• No pins. The Shot struct contains a TArray<FShotTarget> which violates the pin data block's POD constraint; shot data is authored in the node's Details panel or pushed at runtime by the Level Sequence Shot Track. GetPinDeclarations returns empty.
• Pose-overwriting. Position, Rotation, FieldOfView, Aperture, and FocusDistance are unconditionally written from the solver result when it succeeds. Place downstream nodes after this node if you need to layer additional behavior.
• Physical camera. PhysicalCameraBlendWeight is forced to 1.0 so aperture and focus distance reach the renderer's DoF system.
• Anchor failure. If the placement or aim anchor cannot be resolved (invalid index, all weights zero), the node passes the upstream pose through unmodified and logs a warning — no camera snap.
• Patch compatibility: Incompatible — the node owns the full pose; patching has no defined semantics.

Header: Nodes/ComposableCameraCompositionFramingNode.h
C++ reference: UComposableCameraCompositionFramingNode
